AUDI A3 MK1 - KG TRIMNING

A3 MK1

1997 - 2002

Position	Application	Part No	Qty Reqd	OE Part Number	OE Housing Part Number	Notes

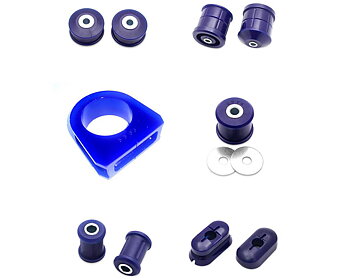

Front & Rear	Front Control Arm, Engine Steady & Beam Axle Set - Petrol Models	KIT5133K	1			Kit includes 1 x SF1915K, 1xSF2082K, 1xSF2576K, 1xSF2577-80K, 1xSF2481K, 1x SF3366K

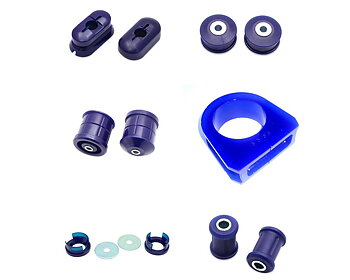

Front & Rear	Front Control Arm, Engine Steady & Beam Axle Set - Diesel Models	KIT5133AK	1			Kit includes 1 x SF1915K, 1xSF2082K, 1xSF2575K, 1xSF2577-70K, 1xSF2481K, 1x SF3366K
Front & Rear	Front Control Arm & Beam Axle Set	KIT5133K-RG	1			Kit includes 1 x SF1915K, 1xSF2082K, 1xSF2481K
Front	Front Control Arm Bush Kit	KIT5133CAK	1			Kit Includes; 1xSF2082K, 1xSF1915K

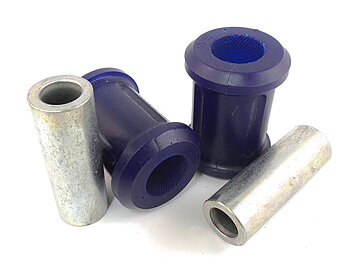

Front	Control Arm Lower - Inner Front Bush	SF1915K	1	357407182

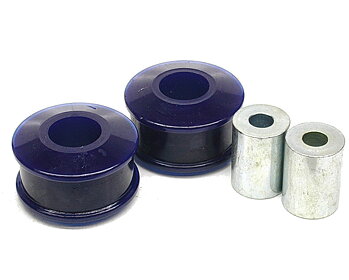

Front	Control Arm Lower - Rear Bush	SF2082K	1	1J0407181		Standard Alignment settings
Front	Control Arm Lower - Rear Bush	SF2083K	1	1J0407181		DS Standard & PS Offset alignment settings,
Front	Control Arm Lower - Rear Bush	SF2084K	1	1J0407181		DS & PS Offset alignment settings
Front	Steering Rack Mounting Bush	SF3366K	1	1J0422884A
Front	Sway Bar Link Bush Kit	SF2127K	1	1J0411327		Upper & Lower mounts - Reuse original crush tubes.
Front	Sway Bar Mount to Chassis Bush Kit	SF2593-K	1	1J0411314R		Measure Bar Dia 15,17,18,19,20,21,22,23,25 & 26mm ava
Front	Lower Rear Engine Mount (Front Bush Insert)	SF2575K	1		1J0199851N	Void filling insert - Low NVH option Recommended for Diesel Motors
Front	Lower Rear Engine Mount (Front Bush)	SF2576K	1		1J0199851AB	Replaces original bush
Front	Lower Rear Engine Mount (Rear Bush)	SF2577-70K	1		1J0199851N	Diesel & Turbo Diesel
Front	Lower Rear Engine Mount (Rear Bush)	SF2577-80K	1		1J0199851AB	Standard Use
	Lower Rear Engine Mount (Rear Bush)	SF2577-90K	1		1J0199851AB	Fast Road Use
Front	Sway Bar Stabiliser Kit	TRC12245	1
Rear	Beam Axle Pivot Bush	SF2481K	1	1J0501541C
