ESCORT MK1 - KG TRIMNING

Escort

Mk 1

1970 - 1975

Position	Application	Part No	Qty Reqd	Notes

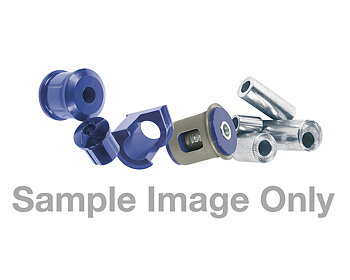

Front & Rear	Front And Rear Suspension Bush Kit	KIT5203K	1	Kit Includes; 1X SF0930K, 1X SF2045-12K, 1X SF0420K, 1X SF1979K, 1X SF0293K, 1X SF0294K, 1X SF0934K.
Front	Control Arm Lower - Inner Bush	SF0930K	1	Forged arm only
Front	Steering Rack & Pinion Universal Coupling	SF1159K	1	Thickness of coupling 10mm
Front	Steering Rack & Pinion Universal Coupling	SF0354K	1	Thickness of coupling 25.5mm
Front	Steering Rack&Pinion Mount Bush-Manual	SF0932K	1
Front	Sway Bar Mount To Chassis Bush	SF2045-24K	1	Measure bar dia 12,14,17,18,19,20,22,23,24,25,27mm
Front	Sway Bar Mount To Chassis Bush	SF0312-22K	1	20,22,24mm dia ava,"Competition use 69mm wide bush"
Front	Sway Bar To Lower Control Arm Bush	SF0420K	1
Rear	Brake Cable Guide 3/8 Cable	SF1828K	1
Rear	Shock Absorber Cross Member to Floor bushes	SF2163K	1
Rear	Leaf Spring Saddle Mount	SF1979K	1
Rear	Shock Absorber - Bush	SF1860K	1	Cotton reel style ( To suit Spax shock)
Rear	Spring Front Eye Bush	SF0293K	1
Rear	Spring Rear Eye Bush	SF0294K	1
Rear	Spring Shackle Upper Bush	SF0934K	1	20mm outside diameter
Rear	Tramp Rod Front Bush	SF1168K	1	RS1600, RS2000 & Mexico
Rear	Tramp Rod Rear Bush	SF0930K	1	RS1600, RS2000 & Mexico
