AUDI S3 & QUATTRO
1.8 Turbo APY,AMK,BAM
1999 - 2003
| Position | Application | Part No | Qty Reqd | OE Part Number | OE Housing Part Number | Notes |
| Front & Rear | Front & Rear Suspension Bush Kit | KIT5240K | 1 | Includes; 1X SF3394K, 1X SF3395K, 1X SF2593-21K, 2X SF2540K, 1X SF2536K | ||
| Front & Rear | Front & Rear Suspension Bush Kit (Alignment Adjustment Kit) | KIT5240ADJK | 1 | Includes; 1X SF3394K, 1X SF3397K, 1x SF2593-21K, 2X SF2541K, 1x SF2536K | ||

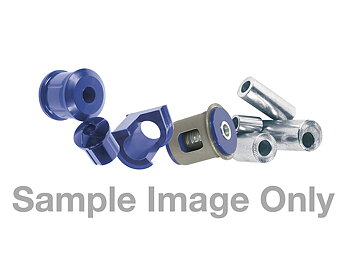

| Front & Rear | Front & Rear Suspension Bush Kit (Alignment Adjustment Kit & R32 ARB Bush Kits) | KIT5240BDJK | 1 | Includes; 1X SF3394K, 1X SF3397K, 1x SF2593-23K, 2X SF2541K, 1x SF2536K, 1x SF2592-19K | ||
| front | Front & Rear Suspension Bush Kit (Alignment Adjustment Kit & H&R ARB Bush Kits) | KIT5240CDJK | 1 | Includes; 1X SF3394K, 1X SF3397K, 1x SF2593-25K, 2X SF2541K, 1x SF2536K, 1x SF2592-21K | ||
| front | Control Arm Lower - Front Bush | SF3394K | 1 | 8N0407182A | To suit cast control arm | |
| front | Control Arm Lower - Rear Bush | SF3395K | 1 | 8N0407181B | Standard | |
| front | Control Arm Lower - Rear Bush | SF3396K | 1 | 8N0407181B | 1 x Standard bush & 1 x Offset bush | |
| front | Control Arm Lower - Rear Bush | SF3397K | 1 | 8N0407181B | 2 x Offset bushes | |
| front | Steering Rack Mounting Bush | SF3366K | 1 | 1J0422884A | ||
| front | Sway Bar To Chassis Bush | SF2593-K | 1 | 1J0411314R | Measure Bar Dia 15,17,18,19,20,21,22,23,25 & 26mm ava | |

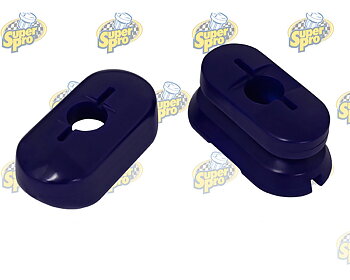

| front | Lower Rear Engine Mount (Front Bush) | SF2576K | 1 | 1J0199851AA | Replaces original bush | |
| front | Lower Rear Engine Mount (Rear Bush) | SF2577-80K | 1 | 1J0199851AA | Standard Use | |
| front | Lower Rear Engine Mount (Rear Bush) | SF2577-90K | 1 | 1J0199851AA | Fast Road Use | |
| front | Sway Bar Link Kit - Heavy Duty Adjustable | TRC12245 | 1 | 12mm Ball Joint Adjustable Link, Minimum Length 300 mm…Maximum Length 345 mm, OE length 336 mm | ||
| Rear | Sway Bar Link Kit - Heavy Duty Adjustable | TRC1045 | 1 | 10mm Ball Joint Adjustable Link, Minimum Length 100 mm…Maximum Length 120 mm, OE length 108 mm | ||

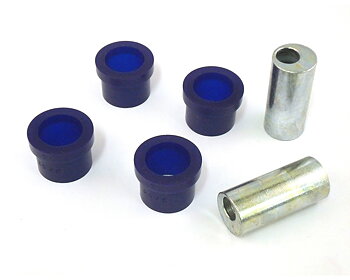

| Rear | Lateral Arm Lower Inner Bush | SF2540K | 1 | 1J0505323 | Standard | |
| Rear | Lateral Arm Lower Inner Bush, Eccentric | SF2541K | 1 | 1J0505323 | Camber Adjustable | |
| Rear | Lateral Arm Upper Inner Bush | SF2540K | 1 | 1J0505323 | Standard | |
| Rear | Lateral Arm Upper Inner Bush, Eccentric | SF2541K | 1 | 1J0505323 | Camber Adjustable | |
| Rear | Sway Bar to Chassis Mount | SF2592-K | 1 | 8D0511327 | Check Bar Diameter 14,15,16,18,19,20,21,22 & 24mm Available | |

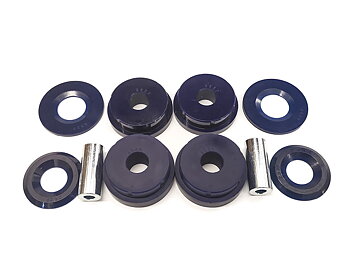

| Rear | Trailing Arm - Front Bush | SF2536K | 1 | 1J0505171B | Standard & Excess toe adj. attainable |
Superpro Kits
Includes; 1X SF3394K, 1X SF3397K, 1x SF2593-25K, 2X…
6,795 SEK per KIT
Includes; 1X SF3394K, 1X SF3397K, 1x SF2593-23K, 2X…
6,795 SEK per KIT
Includes; 1X SF3394K, 1X SF3397K, 1x SF2593-21K, 2X…
6,795 SEK per KIT
Includes; 1X SF3394K, 1X SF3395K, 1X SF2593-21K, 2X…
6,595 SEK per KIT
Bushes in front
To suit cast control arm
SPF3394K
895 SEK per KIT
Bushes in rear
Superpro Sway Bar Link Kit
10mm Ball Joint Adjustable Link
Minimum Length 100 mm…
1,995 SEK per KIT
12mm Ball Joint Adjustable Link
Minimum Length 300 mm…
1,995 SEK per KIT
