ESCORT MK2 - KG TRIMNING

Escort
Mk 2
1975 - 1981

Position	Application	Part No	Qty Reqd	Notes
Front & Rear	Front And Rear Suspension Bush Kit - Non RS Models	KIT5204K	1	Kit Includes; 1X SF0930K, 2X SF2045-12K, 1X SF0420K, 1X SF2112K, 1X SF0935K, 1X SF0933K, 1X SF0934K, 1X SF1426K.
Front & Rear	Front And Rear Suspension Bush Kit - RS Models	KIT5290K	1	Kit Includes; 2X SF0930K,1xSF2045-20K, 1X SF2045-12K, 1X SF0420K, 1X SF2112K, 1X SF0935K, 1X SF0933K, 1X SF0934K, 1X SF1426K, 1xSF1168K.
Front	Control Arm Lower - Inner Bush	SF0930K	1

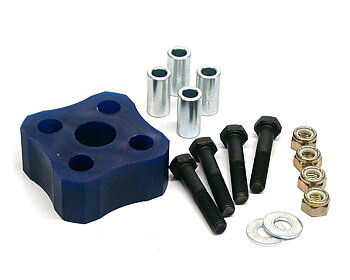

Front	Steering Rack & Pinion Universal Coupling	SF0354K	1
Front	Steering Rack&Pinion Mount Bush-Manual	SF0932K	1
Front	Steering Rack&Pinion Shaft Guide, Manual	SF0931K	1
Front	Sway Bar Mount To Chassis Bush	SF2045-24K	1	Measure bar dia 12,14,17,18,19,20,22,23,24,25,27mm
Front	Sway Bar Mount To Chassis Bush	SF0312-22K	1	20,22,24mm dia ava,"Competition use 69mm wide bush"
Front	Sway Bar To Lower Control Arm Bush	SF0420K	1
Rear	Brake Cable Guide 3/8 Cable	SF1828K	1

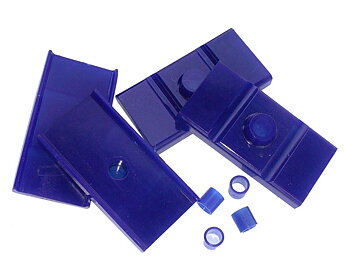

Rear	Leaf Spring Pad	SF2112K	1	Single & Dual leaf spring 1975 - 1981
Rear	Shock Absorber - Bush	SF1860K	1	Cotton reel style ( To suit Spax shock)
Rear	Spring Front Eye Bush	SF0935K	1
Rear	Spring Rear Eye Bush	SF0933K	1
Rear	Spring Shackle Upper Bush	SF0934K	1	20mm outside diameter
Rear	Sway Bar Mount To Axle	SF2045-24K	1	Measure bar dia 12,14,17,18,19,20,22,23,24,25,27mm
Rear	Sway Bar Mount To Axle	SF2281K	1	Not RS, AVO or MEXICO
Rear	Sway Bar Mount To Chassis Bush	SF1426K	1
Rear	Tramp Rod Front Bush	SF1168K	1	RS1600, RS2000 & Mexico
Rear	Tramp Rod Rear Bush	SF0930K	1	RS1600, RS2000 & Mexico
