Nova (Corsa A) & Corsa B
8/1982-10/2000
8/1982-10/2000
| Position | Application | Part No | Qty Reqd | OE Part Number | Notes |

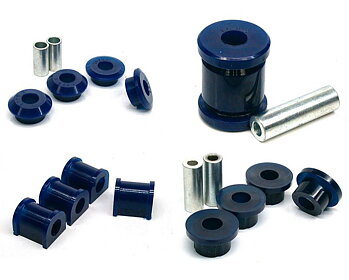

| FRONT &REAR | Front & Rear Suspension Bush Kit - Corsa B | KIT5337K | 1 | Kit Includes: 1xSF0947K, 1xSF1778K, 1xSF1603-21K, 1xSF1662K | |

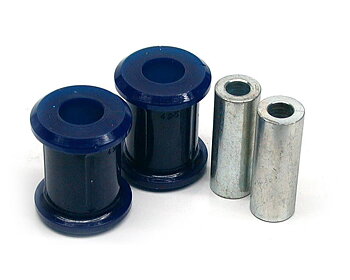

| FRONT | Control Arm Lower - Inner Bush | SF1608K | 1 | 90170152 | 31mm OD |

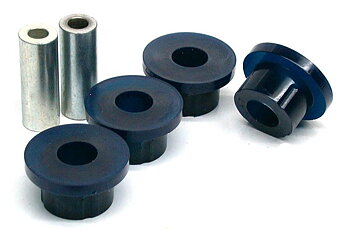

| FRONT | Control Arm Lower - Inner Bush | SF0947K | 1 | 90445097 | |
| FRONT | Strut Bar To Chassis Mount | SF1778K | 1 | Early Corsa (Brace pull) | |
| FRONT | Strut Bar To Chassis Mount | SF1602K | 1 | Nova ( Brace pull ) | |
| FRONT | Sway Bar Mount To Chassis Bush | SF0946-23K | 1 | 90447946 | Measure bar dia 23mm ava |
| FRONT | Sway Bar To Strut Arm "D" Bush | SF1603-18K | 1 | 18mm OD bar 12S,12ST,12NV,13S,13SE,13NE,C13N | |
| FRONT | Sway Bar To Strut Arm "D" Bush | SF1603-21K | 1 | 21mm OD barC14SE,E16SE,C16SE,C16NZ,15D,15TD | |

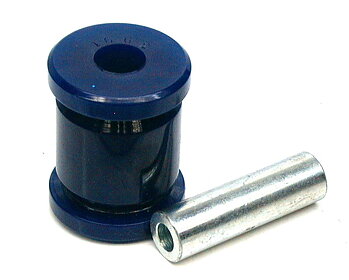

| FRONT | Sway Bar Link Kit - Heavy Duty Adjustable | TRC12160 | 1 | 12mm Ball Joint Adjustable Link, Minimum Length 210 mm…Maximum Length 260 mm, OE length 245 mm | |
| FRONT | Sway Bar Link Kit - Heavy Duty Adjustable | TRC12160 | 1 | 12mm Ball Joint Adjustable Link, Minimum Length 210 mm…Maximum Length 260 mm, OE length 245 mm | |
| REAR | Spring Insulator | SF1358-6K | 2 | Raises Vehicle Approx 9mm | |
| REAR | Spring Insulator | SF1358-8K | 2 | Raises Vehicle Approx 12mm | |
| REAR | Spring Insulator | SF1358-10K | 2 | Raises Vehicle Approx 15mm | |
| REAR | Beam Axle Pivot Bush | SF1662K | 1 | 90217845 |
12mm Ball Joint Adjustable Link, Minimum …
1,575 SEK per KIT
21mm OD barC14SE,E16SE,C16SE,C16NZ,15D,15TD
395 SEK per Kit
18mm OD bar 12S,12ST,12NV,13S,13SE,13NE,C13N
395 SEK per Kit
Kit Includes: 1xSF0947K, 1xSF1778K, 1xSF1603-21K, 1xSF1662K
1,895 SEK per KIT
IRS Raises vehicle approximately 15mm A=138mm B=33.8mm…
395 SEK per KIT
IRS Raises vehicle approximately 12mm A=138mm B=33.8mm…
330 SEK per KIT
IRS Raises vehicle approximately 9mm A=138mm B=33.8mm…
275 SEK per KIT
