The numbers are clickable

Tuning

Choke Weber 45DCOE
72110
Two needed for one carb
175 SEK per each
Auxiliary venturi  Weber 45DCOE
69602
Two needed per carb
595 SEK per each
Emulsion tube Weber
61450
Two needed per carb
195 SEK per each
Air corrector jet Weber DCOE/DCO
Air corrector jet Weber DCOE/DCO
77401
Two needed per carb Also for IDA IDF
40 SEK per each
Main jet Weber DCOE DCO IDF IDA
73401
Two needed per carb
40 SEK per each
Pump jet Weber DCOE/DCO
76801
Two needed per carb
85 SEK per each
Spill valve Weber DCOE/DCO/DCD
79701
DCOE/DCO/DCD/SP/IDF/IDA/DCOM/ICT One needed per carb
195 SEK per each
Needle valve Weber DCOE/DCO
Needle valve Weber DCOE/DCO
79503
One needed per carb
99 SEK per each
Main jet kit 110-130 DCOE/DCO
73401-110-130K
Contains 4 of each 110-115-120-125-130
800 SEK per each675 SEK per each

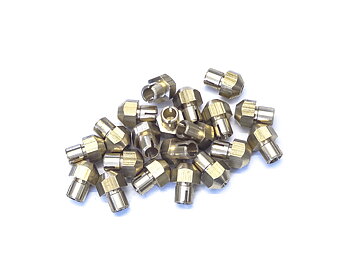

Main jet kit 135-155 DCOE/DCO
73401-135-155K
Contains 4 of each 135-140-145-150-155
800 SEK per each675 SEK per each
Main jet kit 160-180 DCOE/DCO
73401-160-180K
Contains 4 of each 160-165-170-175-180
800 SEK per each675 SEK per each
Main jet kit 185-205 DCOE/DCO
73401-185-205K
Contains 4 of each 185-190-195-200-205
800 SEK per each675 SEK per each
Main jet kit 210-230DCOE/DCO
73401-210-230K
Contains 4 of each 210-215-220-225-230
800 SEK per each675 SEK per each

Idle jet

F2 Idle jet Weber DCOE/DCO
74815
Two needed per carb idling jet
45 SEK per Piece
F4 Idle jet Weber DCOE/DCO
74817
Two needed per carb idling jet
55 SEK per Piece
F5 Idle jet Weber DCOE/DCO
74818
Two needed per carb idling jet
55 SEK per Piece
F6 Idle jet Weber DCOE/DCO
74819
Two needed per carb idling jet
45 SEK per Piece
F8 Idle jet Weber DCOE/DCO
74821
Two needed per carb idling jet
45 SEK per Piece
F9 Idle jet Weber DCOE/DCO
74822
Two needed per carb idling jet
45 SEK per Piece
F10 Idle jet Weber IDA without side opening
74823
Two needed per carb, series F10 without hole…
50 SEK per Piece
F11 Idle jet Weber DCOE/DCO
74824
Two needed per carb idling jet
45 SEK per Piece
F12 Idle jet Weber DCOE/DCO
74825
Two needed per carb idling jet
55 SEK per Piece
F13 Idle jet Weber DCOE/DCO
74826
Two needed per carb idling jet
45 SEK per Piece
F17 Idle jet Weber DCOE/DCO
74830
Two needed per carb idling jet
45 SEK per Piece
F19 Idle jet Weber DCOE/DCO
74832
Two needed per carb idling jet
45 SEK per Piece

Gaskets

Repair kit Weber DCOE
RKDCOE
Weber DCOE includes: gaskets o-rings washers filter needle valve One kit needed per carb
335 SEK per each
Gasket Top cover Weber DCO/DCOE 152
41715-011
See picture paper
65 SEK per each
Fibre seal Fuel connection Weber DCOE/DCO
41530-031
15 SEK per each
O-ring Pump jet Weber DCOE/DCO
41565-009
16 SEK per each
Gasket Cover plate rear Weber DCOE/DCO
41640-021
35 SEK per each
Gasket Bottom cover Weber DCOE/DCO
41640-001
105 SEK per each
Gasket Jet cover upper Weber DCOE/DCO
41550-002
15 SEK per each
O-ring Weber
41565-002
For example idle mixing screw Mounted under spring +…
35 SEK per each
Gasket Choke blanking plate
99903-192
Cold start blanking plate gasket Used when removing the…
50 SEK per each


Keep in mind that most of the control arms to be fitted on Volvo's are too short to reach eachother and must be modified.

control arms

Lever Throttle control Weber DCOE/DCO
45048-130
Fits with 45041-145
445 SEK per each
Lever Throttle control Weber DCO/DCOE
45048-149
Throttle control Weber DCO/DCOE Fits 99901-632 Works with the Weber…
295 SEK per each
Lever Throttle control with spring Weber DCOE/DCO
45048-005
Fits 45048-007
395 SEK per each
Lever Throttle control Weber DCOE
45048-007
Fits 45048-005
395 SEK per each
Lever Throttle control Weber DCOE/DCO
45041-145
Fits 45048-130
345 SEK per each
Lever Throttle control Weber DCOE/DCO
45041-269
Fits 45041-270
445 SEK per each
Lever Throttle control Weber DCOE/DCO
45041-270
Fits 45041-269
495 SEK per each
Lever DCOE/DCO
99901-632
Fits 45048-149 Works with the Weber throttle kit below. (LP2000) NOTE:…
345 SEK per each
Lever Throttle control Weber DCOE
45041-009
Throttle control Weber DCOE Fits 45048-005
495 SEK per each
Lever Throttle control Weber DCOE/DCO
45034-084
Fits 45041-025
285 SEK per each
Lever Throttle control Weber DCOE
45034-042
Right
385 SEK per each
Lever Throttle control Weber DCOE
45034-044
Left
375 SEK per each
Lever Throttle control Weber DCOE
45041-025
Fits 45034-084
295 SEK per each
Weber/Dellorto control arm extender
Weber/Dellorto control arm extender
450EX
About 40mm Note Picture 2 shows it mounted on…
145 SEK per each

Spare parts

Screw kit Top cover plate Weber DCO/E
64700KIT
Contains 4 long and 1st short screw including…
35 SEK per each
Kit Spring Throttle return Weber
47605K
Weber DCOE This kit contains the following articles. 2pcs springs…
105 SEK per KIT
Air filter gasket 45 DCOE/DHLA
7915
Gasket air filter 45 DCOE / DHLA About Ø50mm…
35 SEK per each
Gasket Top cover Weber DCO/DCOE 152 rubber
41715-011G
See picture Rubber
265 SEK per each
Choke blanking plate
52135-027
Cold start blanking plate - Steel Used when removing…
375 SEK per each
Retaining plate for choke plunger
52030-003
95 SEK per each
Washer
55510-128
40 SEK per each
Spindle 45DCOE (152)
10005-447
Hole for roll pin must be made
995 SEK per each
Fuel Connection kit Weber
BK007K
Mounting kit for double Weber DCOE/DCO
525 SEK per Kit
Top cover plate Complete
Top cover plate Complete
31734-198K
Weber 45 DCOE 152 Complete with float /…
2,195 SEK per each
Spindle shaft seal 45 DCOE 152
41575-025
Grön
125 SEK per each
Spindle shaft seal
41575-010
External diameter 11.4mm Internal diameter 7.9mm Thickness 3.1mm
75 SEK per each
Choke actuating mechanism Left
Choke actuating mechanism Left
32556-004
Weber
1,395 SEK per each
Pump rod
Pump rod
10410-015K
Weber A54.5mm B38.55mm compare with the image
495 SEK per each
Fuel union Weber
BK001
Straight Weber DCOE/DCO bolt and gaskets included
145 SEK per Kit
Spring Accel pump Weber DCOE/DCO
47600-068
60 SEK per each
Cover plug Progression hole
61015-009
Weber DCOE152/DCO Thread about 8,9mm
125 SEK per each
Ball valve pump demand
58300-003
Weber DCOE 152
40 SEK per each
Screw Mixture Weber 45DCOE/152
64750-003
85 SEK per each
Spring Starter piston
47600-105
Weber DCOE
95 SEK per each
Stop screw
64625-012
Throttle Weber 45DCOE
50 SEK per each
Cover plug Vacuum take off
64590-008
90 SEK per each
Washer Weber DCOE/DCO
58000-006
For example idle mixing screw Mounted between spring +…
55 SEK per each
Screw Mixture Weber
64750-009
Weber 45DCOE/152
90 SEK per each
Butterfly screw Weber
64520-027
For e.g. Spanish DCOE
35 SEK per each
Butterfly disc Weber 45DCOE/152
64005-084
Weber 45DCOE/152 78°
325 SEK per each
Nut Locking nut Weber DCOE
34705-001
15 SEK per each
Screw Air by pass
64750-002
Weber DCOE/152
145 SEK per each
Air by-pass cap Weber
Air by-pass cap Weber
14945-003
Weber DCOE
35 SEK per each
Lock tab Choke & aux venturi
52155-003
Weber DCOE/DCO
99 SEK per each
Lock washer Weber DCOE
55525-002
Weber DCOE
6 SEK per each
Fuel inlet filter Weber DCOE/DCO/DCD
Fuel inlet filter Weber DCOE/DCO/DCD
37022-002
DCOE/DCO/SP/DGAS/DGMS/DGAV/DGEV/DGV/ICT/IDF Length 24mm Ø11,5mm
80 SEK per each
Float Plastic Weber DCOE/DCO
41030-034
595 SEK per each
Cover Fuel filter Weber
61002-010
Weber 36/36DCD DCOE/IDA/
157 SEK per each
Bolt Union Bolt fuel
12715-008
Weber DCOE/DCO
135 SEK per each
Fuel union T Union
301230
Weber DCOE/DCO
165 SEK per each
Fuel union Weber
10536-035
Single banjo Weber
145 SEK per each
Fuel union
10354-001
Weber DCOE/DCO
140 SEK per each
Cover plug Pump check ball
61015-006
Weber DCOE
36 SEK per each
Weight Pump valve Weber DCOE/DCO
52730-001
Ca 14.5mm length
135 SEK per each
Pin Float Weber DCOE/DCO/DCD
52000-001
40 SEK per each
Cover plug Pump jet
61015-008
Weber
190 SEK per each
Washer Pump jet Weber DCOE/DCO
41535-021
10 SEK per each
Piston Pump plunger
58602-003
Weber
295 SEK per each
Spring Accel pump (soft/light)
47600-064
Weber DCOE
75 SEK per each
Spring pump rod
47600-005
Weber DCOE
135 SEK per each
Piston choke/starter
64330-003
Weber 45DCOE
295 SEK per each
