CORTINA MK1 & LOTUS - KG TRIMNING

SUPERPRO BUSSNINGFORDCORTINA MK1 & LOTUS

Cortina
MK1 & Lotus
1962-1966

Position	Application	Part No	Qty Reqd	Notes

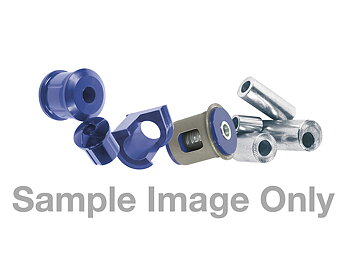

Front & Rear	Front And Rear Suspension Bush Kit GT & Post A-Frame Lotus	KIT5200K	1	Kit Includes; 2X SF0930K, 1X SF0429K, 1X SF2045-12K, 1X SF0233K, 1X SF0935K, 2X SF0934K, 1X SF1043K, 1X SF1168K.
Front & Rear	Front And Rear Suspension Bush Kit To Suit Lotus Cortina with A-Frame only	KIT5201K	1	To suit Lotus Cortina with A-Frame only. Kit Includes; 1X SF0930K, 1X SF0429K, 1X SF2045-12K, 1X SF0233K, 1X SF0935K, 2X SF0934K, 1X SF1043K, 1X SF2430K.

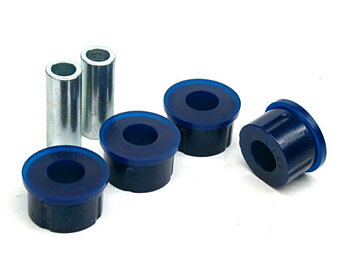

Front	Control Arm Lower - Inner Bush	SF0930K	1	Forged arm only
Front	Drag Link Bush Kit	SF0429K	1
Front	Sway Bar Mount To Chassis Bush	SF2045-K	1	Measure bar dia 12,14,17,18,19,20,22,23,24,25,27mm

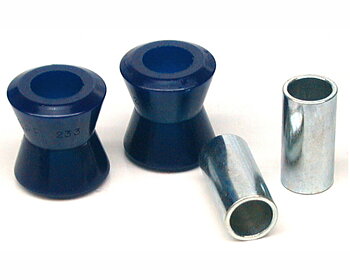

Front	Sway Bar To Lower Control Arm Bush	SF0233K	1	Hour glass style, Tube length 41mm

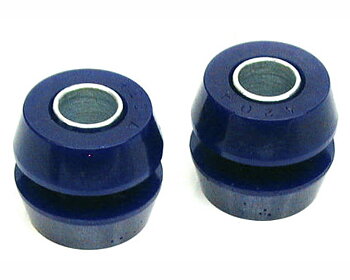

Front	Sway Bar To Lower Control Arm Bush	SF0420K	1	Male / Female style bush, Tube 30.5 length.

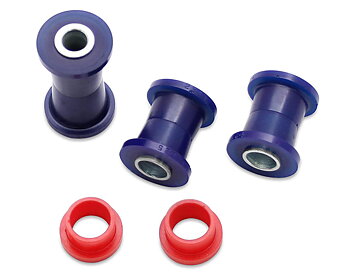

Rear	" A " Frame Bushes	SF2430K	1	Lotus Only
Rear	Shock Absorber - Bush	SF1860K	1	Cotton reel style (To suit Spax shock only)

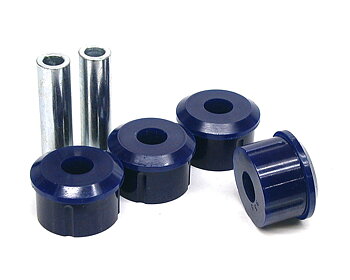

Rear	Spring Front Eye Bush	SF0935K	1
Rear	Spring Rear Bush All	SF0934K	2	Outside diameter of 20mm

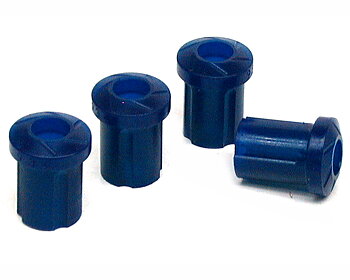

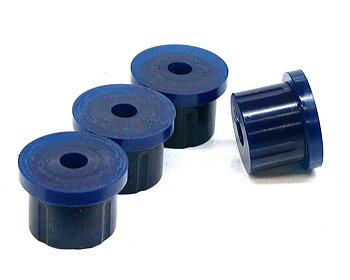

Rear	Spring Shackle Upper Bush	SF1043K	1	Bush outside diameter of 35mm
Rear	Trailing Arm - Rear Bush	SF1168K	1
Rear	Tramp Rod Bush	SF0930K	1	GT & Post A-Frame Lotus "Small End"
Rear	Tramp Rod Bush	SF1168K	1	GT & Post A-Frame Lotus only "Large End"
