CORTINA MKIII / TAUNUS

SUPERPRO BUSSNINGFORDCORTINA MKIII / TAUNUS

Cortina/Taunus

Mk 3, Mk 4, Mk 5, Inc Taunus

Position	Application	Part No	Qty Reqd	Notes

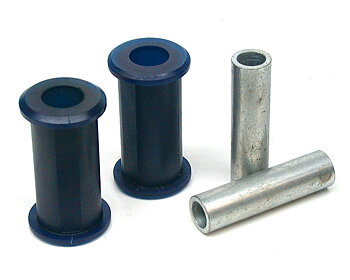

Front	Control Arm Lower - Inner Bush	SF0262K	1

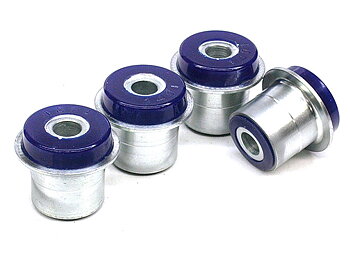

Front	Control Arm Upper - Inner Bush	SF1401K	1

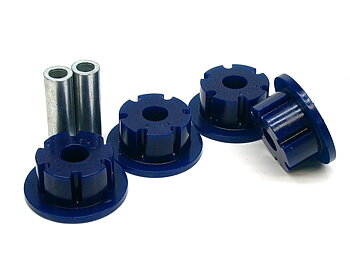

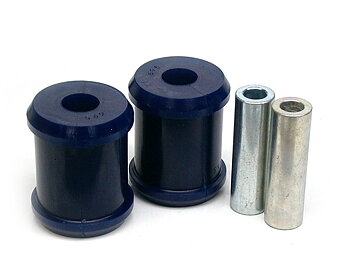

Front	Cross-member To Chassis Mount	SF1547K	1	Fr small bush Mk 3-later models on
Front	Cross-member To Chassis Mount	SF1548K	1	Rear large bush Mk 3-later models on
Front	Strut Bar To Chassis Mount	SF0590K	1	Oval hole in chassis
Front	Strut Bar To Chassis Mount	SF0046K	1	Round hole in chassis

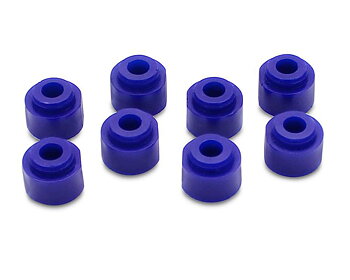

Front	Sway Bar Link Bush Kit	SF2950K	1

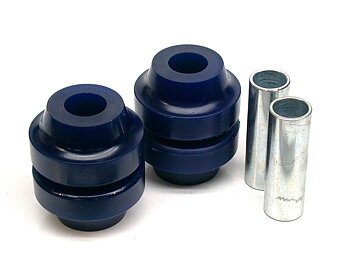

Front	Sway Bar Mount To Chassis Bush	SF1450-K	1	Check Bar Diameter - 16, 18 & 20mm available
Front	Steering Rack & Pinion Mount Bushing	SF1187K	1
Rear	Spring Insulator (Lower)	SF0208-6K	2	Raises vehicle approximately 10mm
Rear	Spring Insulator (Lower)	SF0208-12K	2	Raises vehicle approximately 18mm
Rear	Spring Insulator (Lower)	SF0208-16K	2	Raises vehicle approximately 24mm
Rear	Sway Bar End D Bush	SF2332-16K	1	"D" Shape bush in link for 16mm Dia Bar
Rear	Sway Bar End D Bush	SF2332-12K	1	Mk3 7/70-8/76&Mk4 8/76-8/79 For 12mm Dia Bar
Rear	Sway Bar End Link Bush	SF1089-12K	2	Cotton reel lower bush - 12mm Bar
Rear	Sway Bar End Link Bush	SF1089-16K	2	Cotton reel upper bush - 16mm Bar

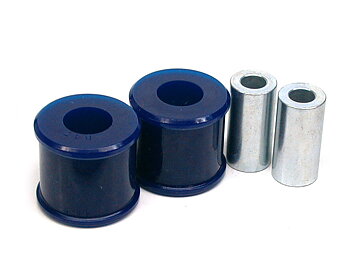

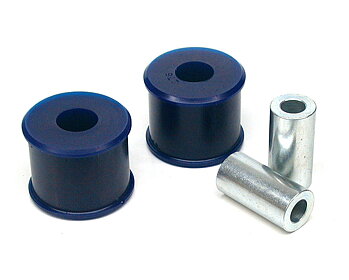

Rear	Trailing Arm - Lower - Front Bush	SF0847K	1	35.5 wide housing, 43.3 ID - Early MKIII
Rear	Trailing Arm - Lower - Front Bush	SF0276K	1	Check size, 47.5mm OD fits original 50mm bush shell - Late MKIII on
Rear	Trailing Arm - Lower - Rear Bush	SF0695-70K	1	All Models

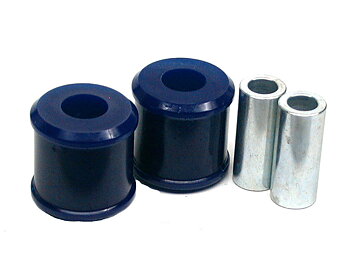

Rear	Trailing Arm - Upper - Front Bush	SF0219-80K	1	28mm wide housing, 39mm ID, British built
Rear	Trailing Arm - Upper - Front Bush	SF1087K	1	Outer housing 32.5mm, German built or Taunus models
Rear	Trailing Arm - Upper - Rear Bush	SF0219-80K	1	28mm wide housing, 39mm ID, British built & early models - Check housing width
