FOCUS MK1 - KG TRIMNING

FOCUS MK1

CL, LX, ST170

2000-2004

Position	Application	Part No	Qty Reqd	Notes
Front & Rear	Front And Rear Suspension Bush Kit	KIT5208K	1	Kit Includes;1X SF2137K, 1XSF2138K, 1X SF2561K, 1 x SF3466K, 1X SF2323K, 1X 2324K, 2X SF2325K, 1X SF2305K, 1X SF2578K.
Rear	Rear Suspension Bush Kit	KIT5208RK	1	Kit Includes;1X SF3466K, 1X SF2323K, 1X SF2324K, 2X SF2325K
Front	Control Arm Lower - Inner Front Bush	SF2137K	1
Front	Control Arm Lower - Inner Front Bush	SF3115K	1	14mm Bolt - RS Only

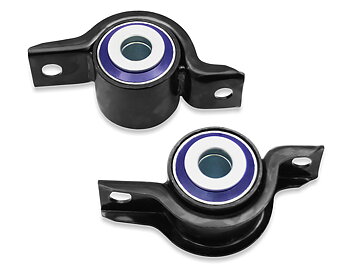

Front	Control Arm Lower - Inner Rear Bush	SF2138K	1	Standard
Front	Control Arm Lower - Inner Rear Bush	SF2139K	1	Double offset

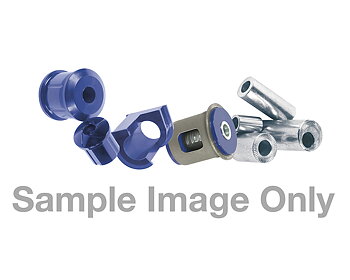

Front	Sway Bar Mount To Chassis Bush	SF2140-K	1	Aftermarket round bar Measure bar dia 21 & 22mm ava
Front	Sway Bar Mount To Chassis Bush	SF2561K	1	21mm OE bar with flats at bush mounting point
Rear	Blade Trailing Arm Front Bush	SF3466K	1	Do not remove original shell 09/2002-05/2005
Rear	Control Arm Lower - Inner & Outer Bush	SF2323K	1	"Front Arm"
Rear	Control Arm Lower - Inner & Outer Bush	SF2324K	1	"Rear Arm"
Rear	Control Arm Upper - Inner / Outer Bush	SF2325K	2	Standard camber settings
Rear	Control Arm Upper - Inner / Outer Bush	SF2326K	2	Camber adjustable -1 to +1 degree adjustment with offsets in both positions
Rear	Sway Bar Link Bush Kit	SF2305K	1	Re-use original bolt
Rear	Sway Bar Mount To Chassis Bush	SF2141-K	1	Aftermarket round bar Measure bar dia 21 & 22mm ava
Rear	Sway Bar Mount To Chassis Bush	SF2578K	1	21mm OE bar with flats at bush mounting point
