FOCUS MK3 - KG TRIMNING

Focus

Mk3

2009-

Position	Application	Part No	Qty Reqd	Notes
Front & Rear	Front And Rear Suspension Bush Kit - Standard Alignment	KIT0169K	1	Kit Includes;1X SF3315K, 1XSF3368K, 1 x SF3466K, 1X SF2323K, 1X 2324K, 2X SF2325K.
Front & Rear	Front And Rear Suspension Bush Kit - Caster & Camber Adjustable	KIT0170K	1	Kit Includes;1X SF3315K, 1XSF3370K, 1 x SF3466K, 1X SF2323K, 1X 2324K, 2X SF2326K.
Front	Control Arm Bush Kit	KIT0171K	1	Kit Includes: 1xSF3368K, 1xSF3115K
Front	Control Arm Bush Kit	KIT0171CADJK	1	Kit Includes: 1xSF3370K, 1xSF3115K
Standard Replacements
Front	Control Arm Inner Front Bush Kit	SF3115K	1
Front	Control Arm Inner Rear Bush Kit	SF3368K	1	Standard alignment - for caster adjustment use SF3369K & SF3370K
Front	Sway Bar Mount Bush	SF2141-K	1	Aftermarket Round Sway bar, 21 and 22mm Available

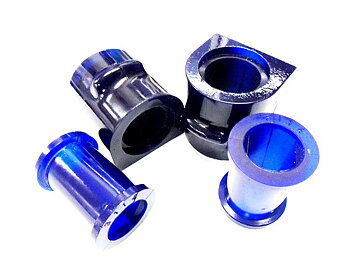

Front	Sway Bar to Chassis Mount Bush Kit	SF2620-23K	1	Suits O.E sway bar size for Diesel vehicle
Front	Sway Bar Mount Bush	SF3114-21.4K	1	Replacement bushing for original bar with flats where bushing is positioned; Not suited to MPS. Available Size - 21.4mm
Front	Sway Bar Mount Bush	SF3902-K	1	Measure bar diameter, 21,23,25,28 mm available
Rear	Blade Trailing Arm Front Bush	SF3466K	1	Do not remove original shell
Rear	Control Arm Lower Inner and Outer Bush	SF2323K	1	Front Arm
Rear	Control Arm Lower Inner and Outer Bush	SF2324K	1	Rear Arm
Rear	Control Arm Upper Inner and Outer Bush	SF2325K	2
Rear	Sway bar Mount Bush	SF3902-K	1
Rear	Sway Bar Mount Bush	SF2141-K	1	Aftermarket bar - Measure Bar Diameter, 21 and 22mm available
Alignment & Motorsport Upgrades
Front	Control Arm Inner Rear Bush Kit	SF3369K	1	1x Offset Bush & 1x Standard for Caster Split - replaces SF3368K
Front	Control Arm Inner Rear Bush Kit	SF3370K	1	Offset Bushes For 1.5 Degree Caster Increase - Replaces SF3368K
Rear	Control Arm Upper Inner and Outer Bush	SF2326K	2	Camber adjustable, offset Tube
